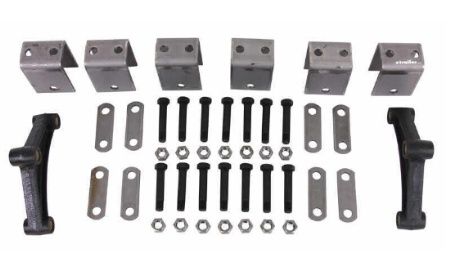

Tandem-Axle Trailer Hanger Kit for Double Eye Springs - 3-1/4" Tall Front/Center/Rear

Specs

Application

• Trailer type: 2,000-lb to 7,000-lb tandem-axle trailers with 1-3/4" wide double-eye springs

Clearance

• Clearance between trailer frame and axle (depending on axle size): 4-1/2" to 5"

Hanger Dimensions

• Hanger height (from center of hole to top of hanger): 3-1/4"

Equalizer Dimensions

• Equalizer length: 7-3/4" from center of bolt hole to center of center of bolt hole

Shackle Straps

• Shackle strap length (from center of hole to center of hole): 2-5/8"

Shackle Bolts

• Shackle bolt dimensions: 3" long x 9/16" diameter
